多頻脫水篩

內容
Content

篩面寬度B=1200
ScreenwidthB=1200

篩面寬度8=1800
ScreenwidthB=1800

篩面寬度B=2400
ScreenwidthB=2400

序號
lo.

VD12
1220x3169

ZK1.2x3.0
1220x3600

VD18
1830X3820

ZK1.8x3.0
1800x3600

VD24
2440x4865

ZK2.4x5.25
2400x5250

1

篩孔尺寸
Sievesize(mm)

條縫Slot
0.3x12

條縫Slot
0.3x12

條縫Slot
0.3x12

條縫Slot
0.5x12

條縫Slot
0.3x12

條縫Slot
0.5x12

2

篩網材料
Sereenmaterial

耐磨聚氨酯
Polyurethane

不銹鋼編織
Stainlesssteel

耐磨聚氨酯
Polyurethane

不銹鋼編織
Stainlessstee

耐磨聚氨酯
Polyurethane

不銹鋼編織
Stainlesssteel

3

處理能力(1/h)
processingcapacity

15-67

6-48

35-135

8-65

95-350

10-77

4

入料粒度(mm)
Feedgrainsize

-1

-1.5

-1

-1.5

-1

-1.5

5

電機功率(kw)
Motorpower

2x5.5

2x5.5

2x7.5

2x11

2x15

2x15

6

Weight(kg)

3529

3400

3500

5700

5700

8700

7

脫水特點
Dehydration
characteristic

設計獨特，因而特別適合處理細粒礦物，處理量大，脫水充分，技術經濟效果顯著.
Thedesignisunique.soitisespeciallysuitablefortheprocessingoffine
minerals.withlargeamountofureatment,fulldehydrationandremarkabletechnicaland
economiceffect.

8

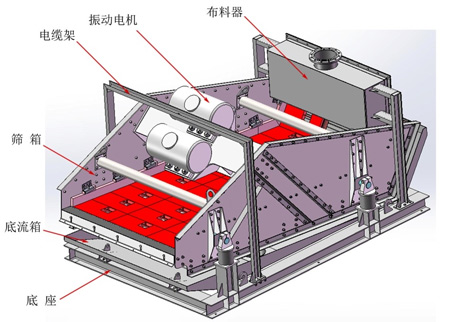

振動裝置
Vibrator

采用雙振動電機激振，結構緊湊堅固，壽命長，克服了傳統塊偏心振動器結構龐大，漏油、磨損大、噪聲大、不便維護的缺點。
Thedoublevibrationmotorisusedtoexciterthevibratian,thestructureiscormpactand
thelifeislong,andthestructureofthetraditionalblockeccentricvibratorishugeand
theleakageisovercoming.Thedisadvantagesofoil.largewear,bignoiseand
inconvenienceofmaintenance.

9

篩體側護板
Sievedsidepanel

側板采用抗磨性能卓越的耐磨膠板，保證篩框不受磨損破壞。
Thesideplateadoptswearresistantrubberplatewithexcellentwear
resistancetoensurethatthescreenframeisnotdamagedbywear.

10

表面處理
SurfaceUeatment

篩體表面采用特別的化學防腐處理，更適合惡劣工況。
Thesurfaceofthesievesistreatedwithspecialchemical
anticorrosion,whichismoresuitableforbadworkingconditions.

11

減震裝置
Shockabsorber

采用橡膠減震柱，更適合潮濕工況， 既減震又經久耐用。
Rubberdampingcolurmn,moresuitableforwetconditions,bothdampinganddurable.

12

韓網維護
Maintainscreen

采用嵌入式耐磨聚氨酯組合篩網(305mmx305mm)易于安裝和局部更換，壽命長。
Theembeddedwear-resistantpolyurethanecompositescreen(305mmx305mm)isused.
Itiseasytoinstallandreplace,andhasalonglife.
